Leup Vx-6hd 1-6x24 Firedot Dplx 30mm

Leupold VX-6HD 1-6x24 FireDot Duplex 30mm Riflescope

Overview

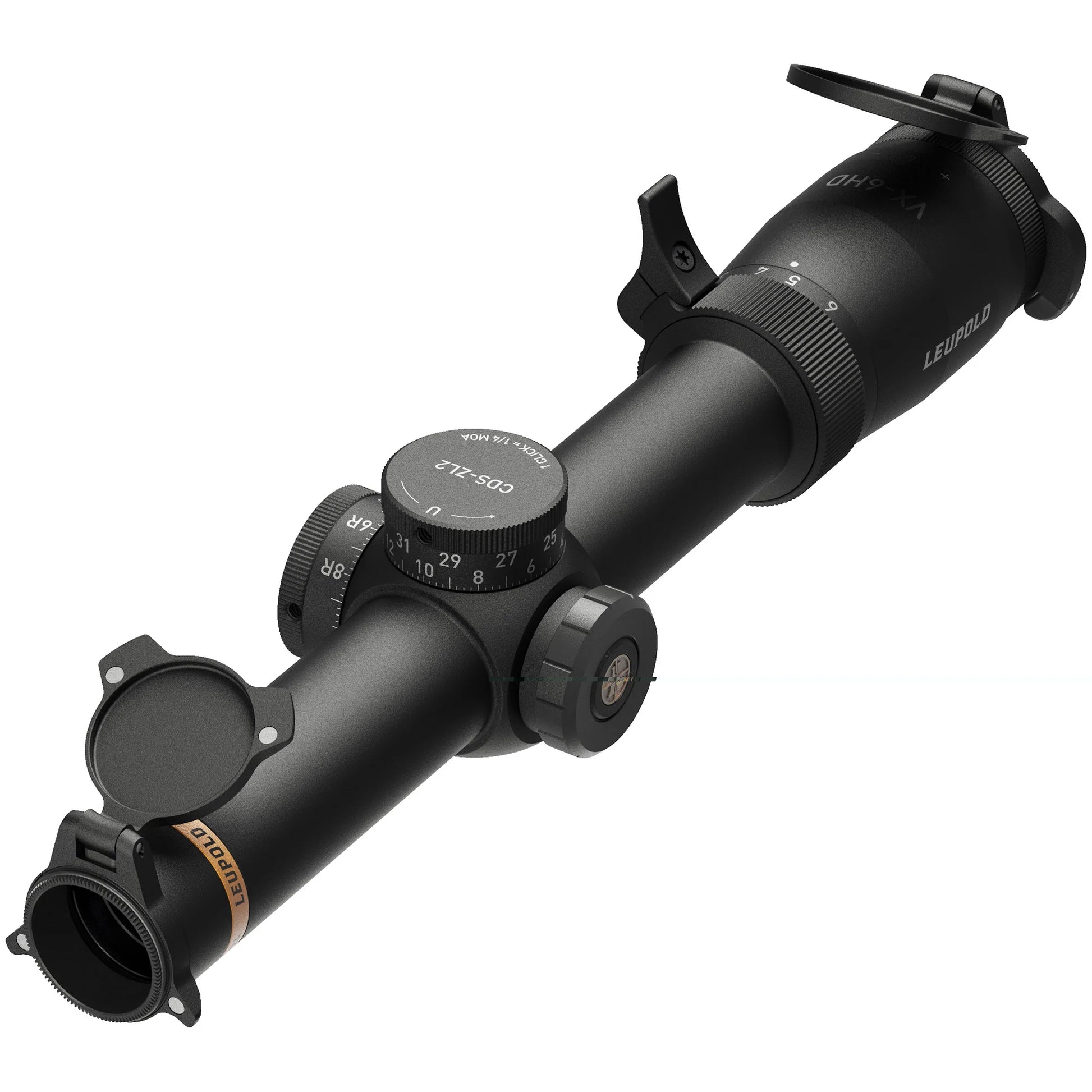

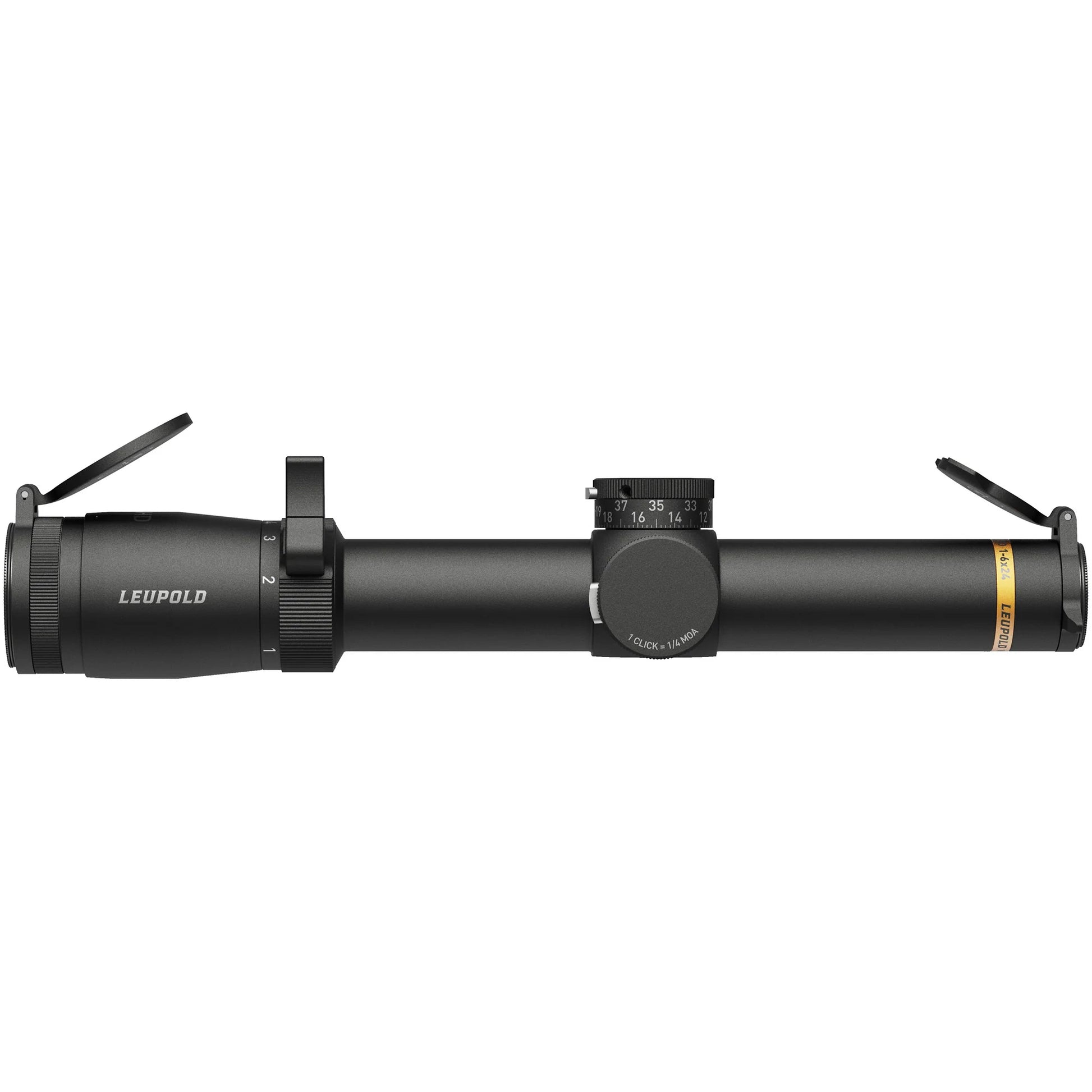

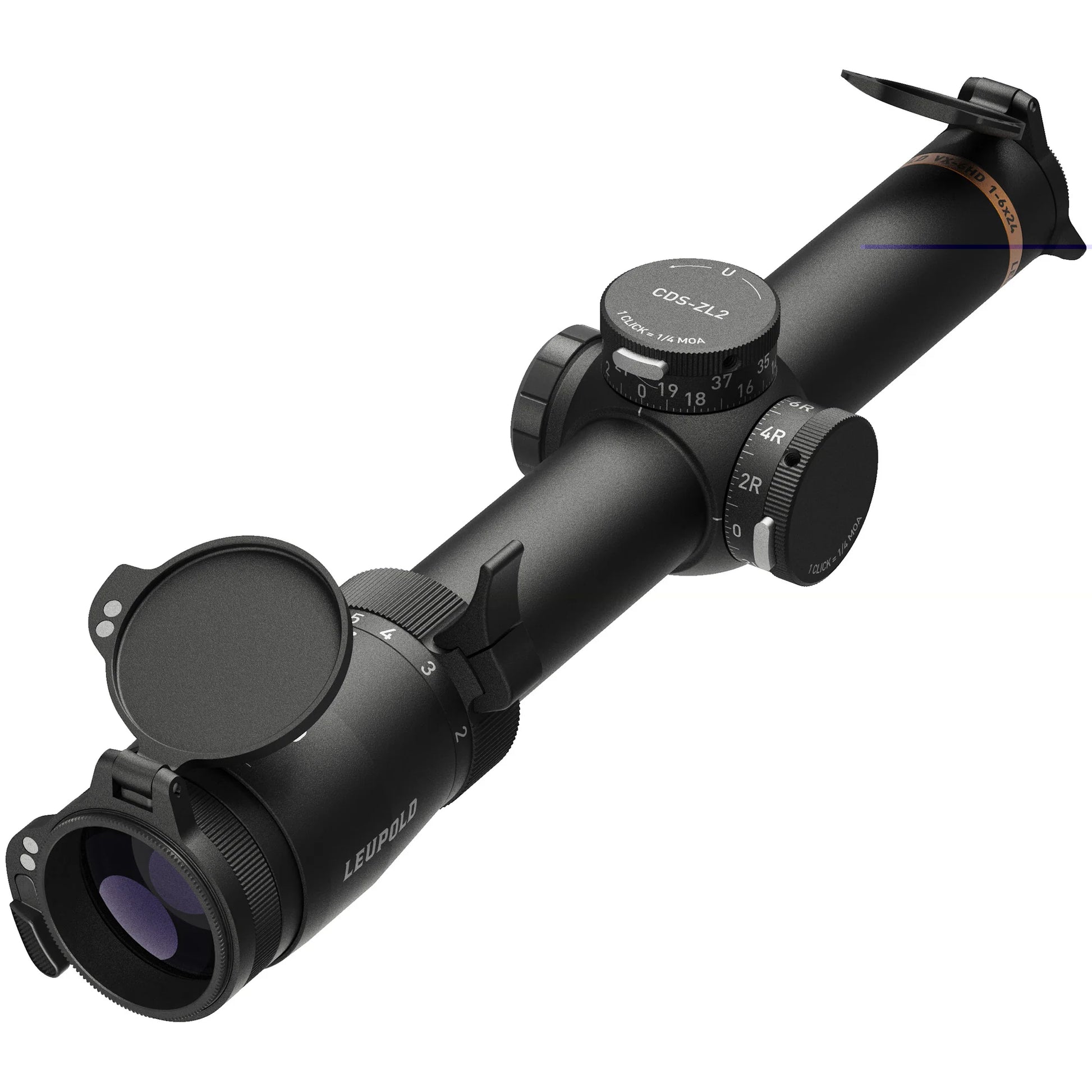

The Leupold VX-6HD 1-6x24 FireDot Duplex riflescope is designed to provide versatility and performance in a rugged and reliable package. This product features Leupold’s Professional-Grade Optical System, ensuring exceptional light transmission and glare reduction in challenging environments.

Features

The VX-6HD offers a wide zoom range from 1x to 6x, making it suitable for various shooting applications. The FireDot Duplex reticle is illuminated and powered by fiber-optics, providing multiple brightness settings for changing conditions. The scope is also equipped with an in-scope electronic reticle level and a CDS-ZL2 ZeroLock elevation dial, enhancing its precision and accuracy.

Specifications

General Specifications

• Magnification Range: 1x to 6x
• Objective Size: 24mm
• Tube Diameter: 30mm
• Adjustable Parallax: No
• Side Focus: No
• Battery Type: CR2032
• BDC Dial Included: No
• Custom Dial Compatible: Yes
• Daylight Bright Illumination: Yes
• Custom Dial System (CDS): Yes
• Elevation Adjustment Type: CDS-ZL2
• Light Management System: Professional-Grade Optical System
• Locking Dial: Yes
• Magnification Type: Variable
• Nightvision Compatible: No
• Reticle Focal Plane: Second Focal Plane
• Revolution Indicator: Yes
• Reticle: Illuminated FireDot Duplex
• Rezero Type: Set Screw
• Reticle Type: Illuminated
• Adjustable Objective: No
• Switch Type: Push Button
• Windage Adjustment Type: Zero-Lock Windage
• Weight (oz): 16.2
• Elevation Adjustment Value per Click: 1/4MOA
• Elevation Adjustment Range (MOA): 170
• Elevation Adjustment Range (MIL): 49
• Elevation Adjustment Range (cm @ 100m): 495
• Elevation Adjustment Per Revolution: 20 MOA
• Elevation Dial Travel Limit: 38MOA
• Windage Adjustment Value per Click: 1/4MOA
• Windage Adjustment Range (MOA): 170
• Windage Adjustment Range (MIL): 49
• Windage Adjustment Range (cm @ 100m): 495
• Windage Adjustment Per Revolution: 20 MOA

Detailed Reticle Information

The FireDot Duplex reticle is a classic design brought to new technology. It features a fiber-optic powered red dot with multiple brightness settings for changing conditions. This reticle is designed to bring your eye to the center of the reticle for quick target acquisition, making it suitable for a broad range of shooting applications.

Dimensions

• A Total Length (in): 10.8
• B Total Mounting Space (in): 6.8
• C Front Mounting Space (in): 2.9
• D Rear Mounting Space (in): 2.6
• E Eyepiece Length (in): 3.3
• G Objective Diameter (in): 1.2
• H Eyepiece Diameter (in): 1.8
• K Maintube Diameter (mm/in): 30 mm

Additional Features

• Battery Life (hr), Low Intensity: 1600
• Battery Life (hr), Medium Intensity: 1000
• Battery Life (hr), High Intensity: 300
• Number of Illum Settings: 8

Compatibility

The Leupold VX-6HD is designed, machined, and assembled in the USA and is guaranteed to perform for life. If it doesn’t, Leupold will repair or replace it for free, whether you’re the original owner or not.

Conclusion

The Leupold VX-6HD 1-6x24 FireDot Duplex riflescope is a versatile and reliable optic that combines exceptional performance, durability, and precision. Its wide zoom range, illuminated FireDot Duplex reticle, and advanced features make it an ideal choice for various shooting applications, from close to mid-range hunting to tactical use.
