Leup Mark 5hd 2-10x30 Ffp Illtmr

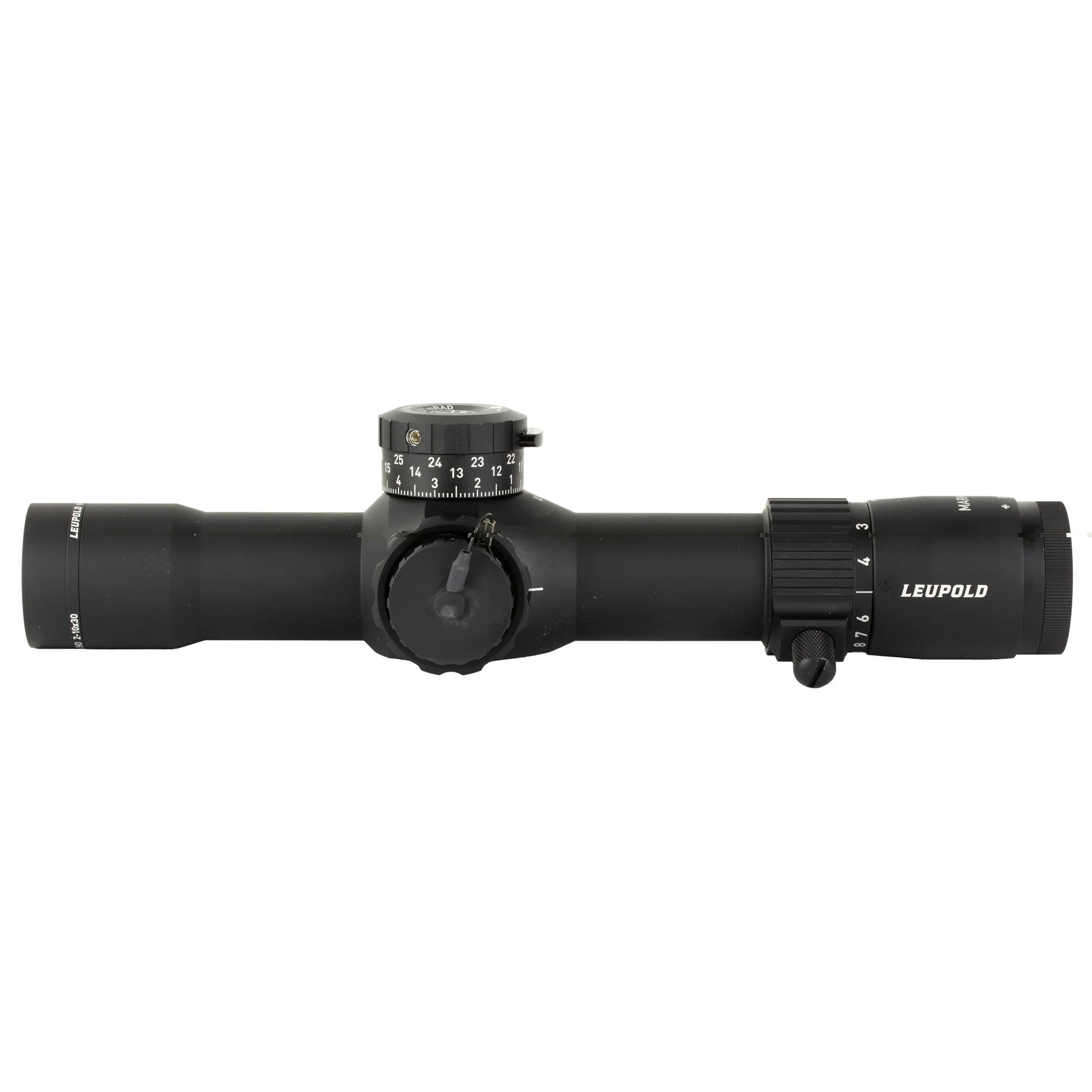

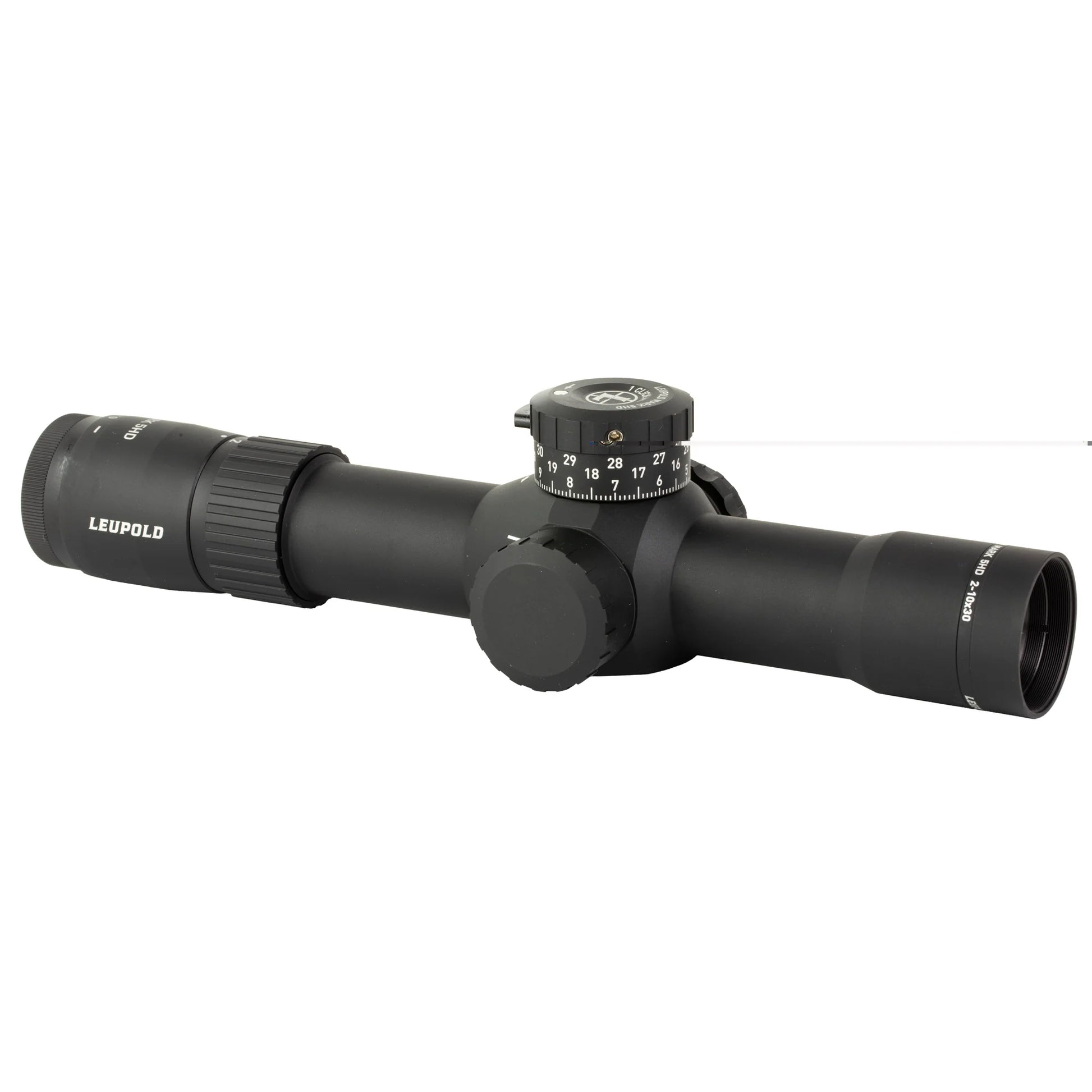

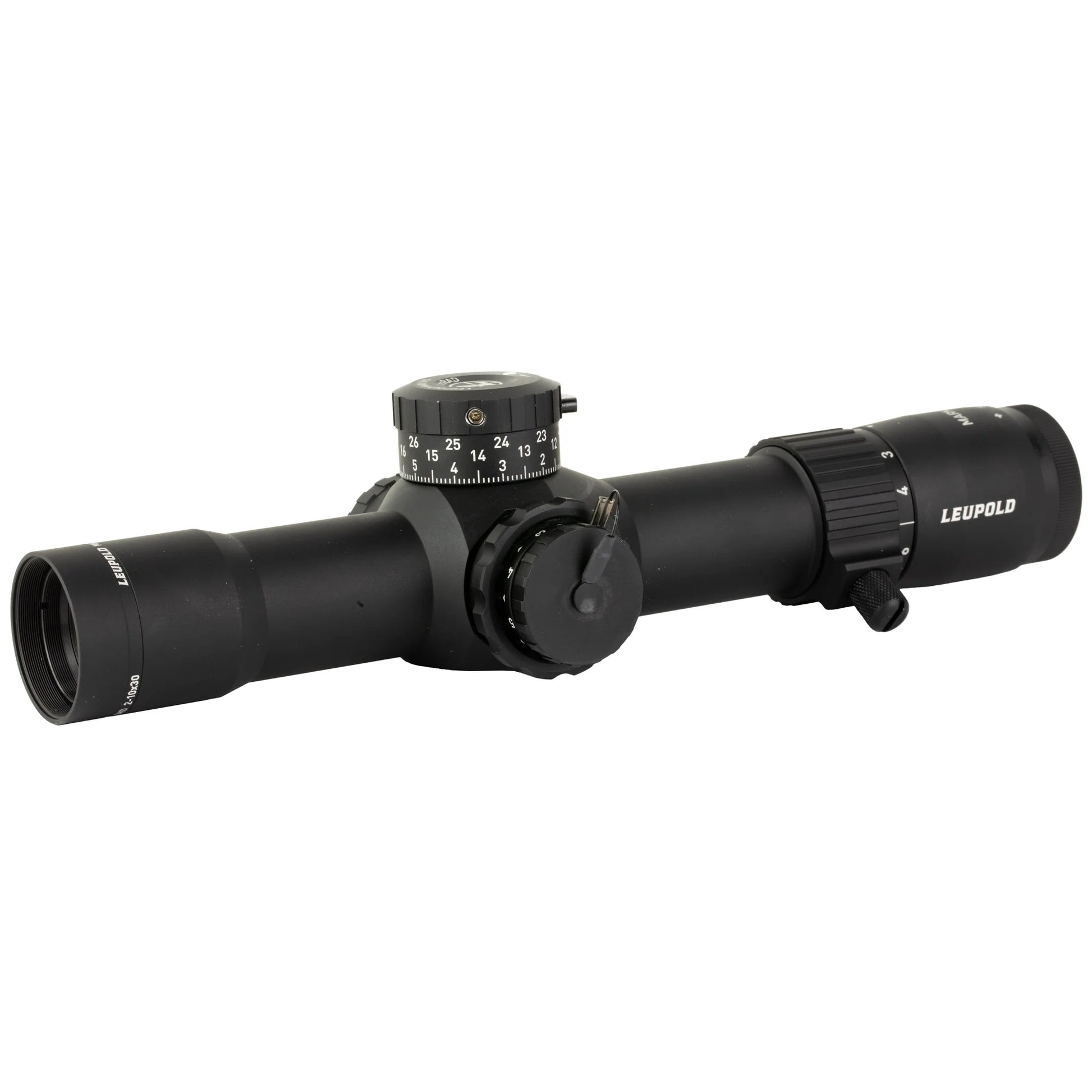

Leupold Mark 5HD 2-10x30 FFP Illum. TMR Riflescope

Overview

The Leupold Mark 5HD 2-10x30 FFP Illum. TMR Riflescope is a mid-range scope that embodies military tradition and innovation. Created as an evolution of the scopes used on the MK12 SPR, it extends the limits of tactical carbines. This scope features a first focal plane reticle, side focus, and a three-turn elevation turret with 34.9 MILs of adjustment in 0.1 MIL increments, ensuring precise and reliable performance.

Features

The Mark 5HD is built around Leupold’s Professional-Grade Optical System, offering unmatched light transmission that excels in challenging lighting conditions. It provides industry-leading glare reduction, ensuring a clear image even in direct sunlight. The scope’s ergonomic design includes more tactile and audible click adjustments, larger numbers, and a high-speed throw lever, making it easy to use in the field.

Reticle Details

The scope's TMR (Mk) Illum. FFP reticle expands on the existing MIL Dot design, using hash marks instead of dots for increased ranging and holdover precision. The reticle provides aiming points for both wind and bullet drop compensation. Each MIL is approximately 3.6 inches at 100 yards, with hash marks spaced 0.5 MIL apart, transitioning to 0.2 MIL spacing on the outer edges. This reticle is not caliber specific and operates in the first focal plane.

Specifications

• Adjustable Parallax: Side Focus
• Battery Type: CR2032
• BDC Dial Included: No
• Daylight Bright Illumination: No
• Custom Dial System (CDS): No
• Elevation Adjustment Type: M5C3
• Electronic Reticle Level: No
• Guard-ion Lens Coating: No
• Illuminated: Yes
• Total Length (in): 11.2
• Total Mounting Space (in): 5.9
• Front Mounting Space (in): 1.7
• Rear Mounting Space (in): 2
• Eyepiece Length (in): 3.3
• Objective Length (in): 2
• Objective Diameter (in): 1.6
• Eyepiece Diameter (in): 1.8
• Maintube Diameter (mm/in): 35 mm

Additional Features

• ZeroLock System: Ensures the elevation dial won't move when knocked around.
• Side Focus: Adjusts the scope’s parallax, making the reticle clearer at different distances.
• High-Speed Throw Lever: Facilitates quick changes between magnification settings.
• Professional-Grade Optical System: Offers unmatched light transmission and industry-leading glare reduction.

Dimensions

• A Total Length (in): 11.2
• B Total Mounting Space (in): 5.9
• C Front Mounting Space (in): 1.7
• D Rear Mounting Space (in): 2
• E Eyepiece Length (in): 3.3
• F Objective Length (in): 2
• G Objective Diameter (in): 1.6
• H Eyepiece Diameter (in): 1.8
• K Maintube Diameter (mm/in): 35 mm

Conclusion

The Leupold Mark 5HD 2-10x30 FFP Illum. TMR Riflescope is a versatile and reliable optic designed to perform in a wide range of conditions. Its unique combination of features, durability, and professional-grade optical performance makes it a top choice for professionals and enthusiasts alike.
