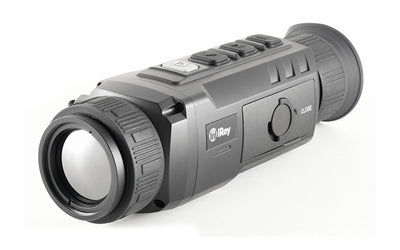

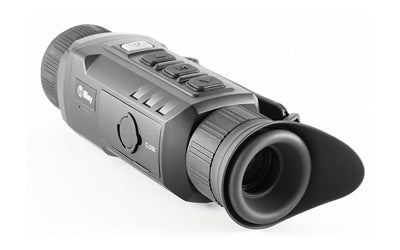

Infiray Zoom Zh38 Variable 19/38mm

Infiray Zoom Zh38 Variable 19/38mm

Product Overview

The Infiray Zoom ZH38 Variable 19/38mm is a high-end thermal imaging monocular designed for outdoor use. It offers several innovative features that set it apart from other thermal imaging devices on the market. This product is renowned for its dual field of view (FOV), which allows users to switch seamlessly between a wide FOV for detection and a narrow FOV for target identification.

Features

The advanced technology used in the ZH38 includes Shutterless Calibration Technology (SCT), which simplifies use and reduces power consumption. It also features a full-color 1440x1080 HD OLED display, working in tandem with its ultra-sensitive 12 μm 640x512 sensor and MATRIX III Processing. These features provide a flexible and eye-popping viewing experience.

Specifications

• Magnification: The ZH38 offers 1.6x and 3.2x optical magnification, which can be adjusted using an intuitive twist of the objective focus ring.
• Objective Lens: The device is equipped with a variable objective lens of 19mm and 38mm.
• Field of View: The FOV is adjustable to 22.90 x 17.20 degrees when the objective is set to 19mm and 11.50 x 8.70 degrees when set to 38mm.
• Resolution: The thermal sensor has a resolution of 640x512 pixels and a frame rate of 50Hz.
• Battery: It uses a Li-Ion battery pack with a runtime of 10 hours.
• Dimensions: The device measures 7.48 inches in length, 2.55 inches in width, and 2.36 inches in height.
• Weight: It weighs approximately 19.04 ounces.
• Focus Range: The focus range is 2150 yards.
• Diopter Adjustment: The device allows for diopter adjustments ranging from -5 to +5.
• Controls: Controls are manual.
• Infrared Illuminator: It includes an infrared illuminator.
• Battery Life: The battery life is approximately 10 hours.
• Display: The ZH38 features a full-color 1440x1080 HD OLED display.
• Display Resolution: The display resolution is 1440x1080.
• Focusing Mechanism: The focusing mechanism is manual.
• Warranty: The product comes with a 5-year warranty.
• Housing Material: The housing is made of aluminum.
• Operating Temperature Range: It operates within the range of -4°F to 122°F.
• Power Source: It uses an IBP-1 Li-Ion Battery Pack.
• Run Time: The run time is approximately 10 hours.
• Length: The length is 7.48 inches.
• Width: The width is 2.55 inches.
• Height: The height is 2.36 inches.
• Video Output: Yes.
• Image Capture: Yes.
• Weight: The weight is approximately 19.04 ounces.
• Video Output: The video output is in analog RS-170/NTSC.
• WiFi: Yes.
• Ingress Protection: It has an IP67 rating.
• Country of Manufacture: China.
• Connector Type: USB-C.
• Startup Time: The startup time is less than 10 seconds.
• Color Palettes: The color palettes include White Hot, Black Hot, Red Hot, Color, and Highlight.
• Rangefinder: Yes.
• Stand-by-Mode: Yes.
• Picture-in-Picture: Yes.
• Storage Capacity: 32GB.
• Mobile App: Yes.
• User-Updatable Firmware: Yes.
• External Power Source: Yes, via USB-C 5V.
• PC Sensitivity: Yes.
• Tube Type: InfiRay Outdoor.
• SNR: 640x480.
• PN: InfiRay MICRO II.
• SSN: 12μm.
• Luminance Gain @ 2X 10-6 fc: 8-12 Microns.
• Customer: Germanium.
• Product Family: ZOOM Series.
• UPC: 850029093565.

The Infiray Zoom ZH38 Variable 19/38mm is a cutting-edge thermal imaging monocular that embodies innovation and practicality. Its advanced features and specifications make it a valuable tool for outdoor enthusiasts, particularly those involved in hunting and surveillance activities.
