Infiray Rico Hybrid 640 4x Thermal

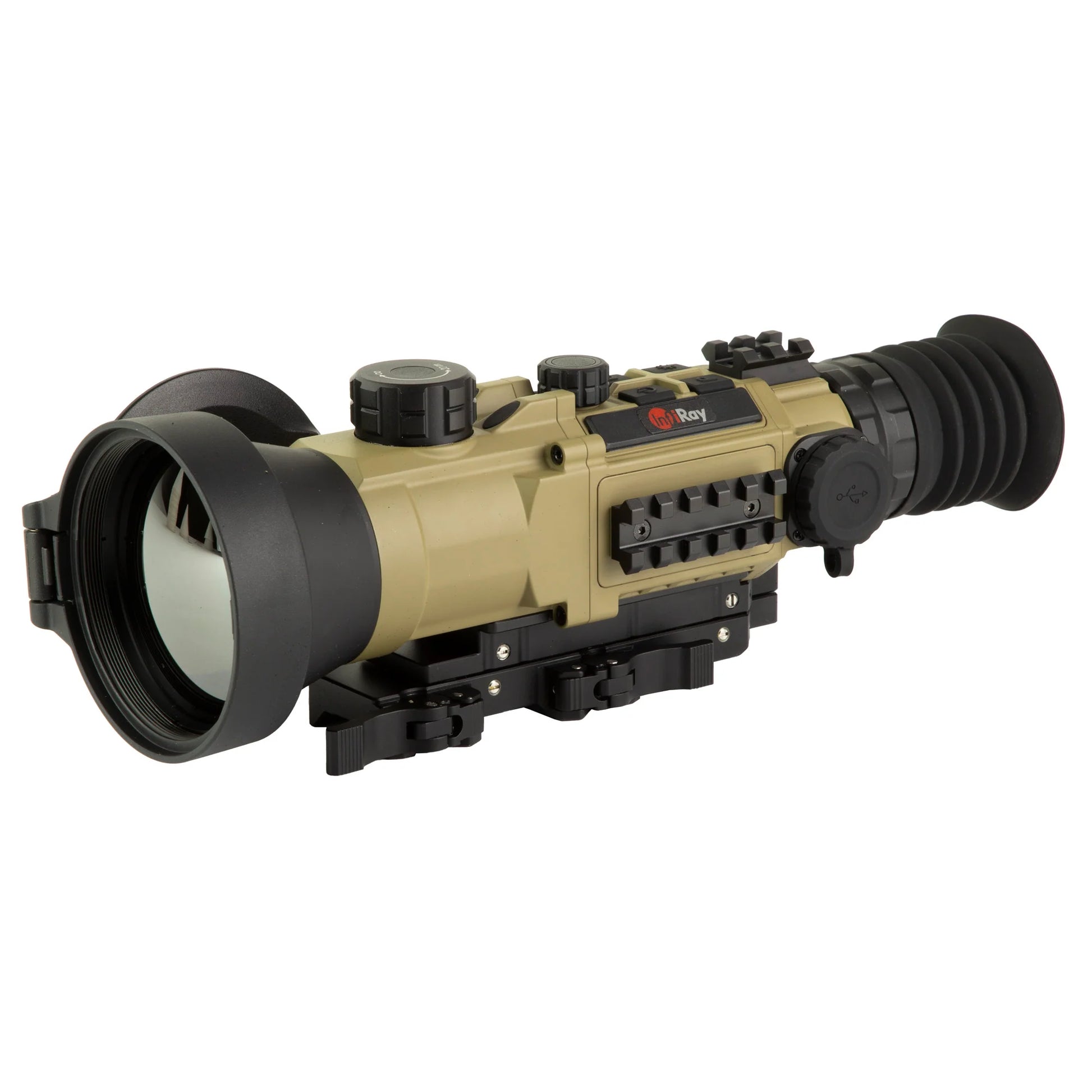

InfiRay Outdoor RICO HYBRID 640 4X 75mm Multi-Function Thermal Weapon Sight

Overview
The InfiRay Outdoor RICO HYBRID is a versatile and high-performance thermal imaging device that combines the capabilities of both a thermal clip-on and a thermal weapon sight. This unique device offers a detection range of up to 3600 yards and is compatible with day optics up to 10× as an inline clip-on sight. It features advanced functionalities such as compatibility with a 1,000-yard laser rangefinder, a custom reticle generator, Bluetooth remote, and an onboard ballistic solver.

Features
The HYBRID’s low-distortion orthoscopic eyepiece and a large-format 2560×1920 display provide comfortable viewing as a dedicated sight while maintaining the pixel density and resolution for use as a clip-on optic. It includes advanced features such as compatibility with a 1,000-yard laser rangefinder, a custom reticle generator, Bluetooth remote, and an onboard ballistic solver. The HYBRID supports ballistic calculation via a user-uploaded .xlsx file and integrates with user-supplied ballistics data to apply hold-over on a custom reticle.

Specifications

• Device Technology: Thermal Imaging
• Objective Focal Length: 75mm
• Sensor Pixel Size: 12μm
• Sensor Frame Rate: 50hz
• Detection Range: 3600 Yards
• Sensor Resolution: 640×512
• Optical Magnification: 4X
• Digital Magnification: 8X, stepped
• Onboard Recording: Yes
• Display Type: 1.03-inch Large-format AMOLED
• Display Resolution: 2560x1920
• Color Palettes: White Hot, Black Hot, Red Hot, Iron Red, Rainbow, Outline
• Reticle Types: 9 (7 Static, 1 DIY, 1 BDC)
• Sensor Type: InfiRay MICRO II
• Thermal Sensitivity: ≤25 mK
• Non-Uniformity Correction (NUC): Manual, Automatic, Semi-Automatic
• Objective Lens Material: Germanium
• Horizontal Angular Field of View: 5.9°
• Vertical Angular Field of View: 4.4°
• Focusing Mechanism: Manual Focus
• Eye Relief: 60mm
• Diopter Range: -4 to +2
• Power Source: USB-C External, IBP-1H Li-ion Battery Pack
• Battery Capacity: 4400mAh
• Onboard Storage: 64GB
• Run Time: 6+ hours
• Environmental Specifications: Operating Temperature Range -4°F~122°F, Ingress Protection IP67, Recoil Rating 1000 g/s² (300 Win./7mm Mag)
• Physical Specifications: Weight 45.08 Oz., Height 3.58, Width 4.13, Length 12.20, Housing Material Magnesium Alloy, Mounting Interface Picatinny MIL-STD 1913 Rail
• User Interface: 4 Button Pad with Encoder

Advanced Capabilities
The HYBRID includes several advanced features that enhance its functionality:

• Compatibility with 1,000-yard Laser Rangefinder: Provides real-time ranging data that can integrate with user-supplied ballistics data and apply hold-over on a custom reticle.
• Custom Reticle Generator: Allows creation and upload of custom reticles.
• Bluetooth Remote: Enables remote control and data transfer.
• Onboard Ballistic Solver: Supports ballistic calculation and display.

Applications
The InfiRay Outdoor RICO HYBRID is suitable for various applications, including:

• Military and Law Enforcement: Enhanced detection range and advanced capabilities make it ideal for tactical operations.
• Hunting and Surveillance: Suitable for long-range hunting and surveillance.
• Research and Development: Advanced features support research and development applications.

Conclusion
The InfiRay Outdoor RICO HYBRID 640 4X 75mm Multi-Function Thermal Weapon Sight is a versatile and high-performance device that combines the capabilities of a thermal clip-on and a thermal weapon sight. Its advanced features and specifications make it a valuable tool for various applications, including military and law enforcement, hunting, and research and development.
