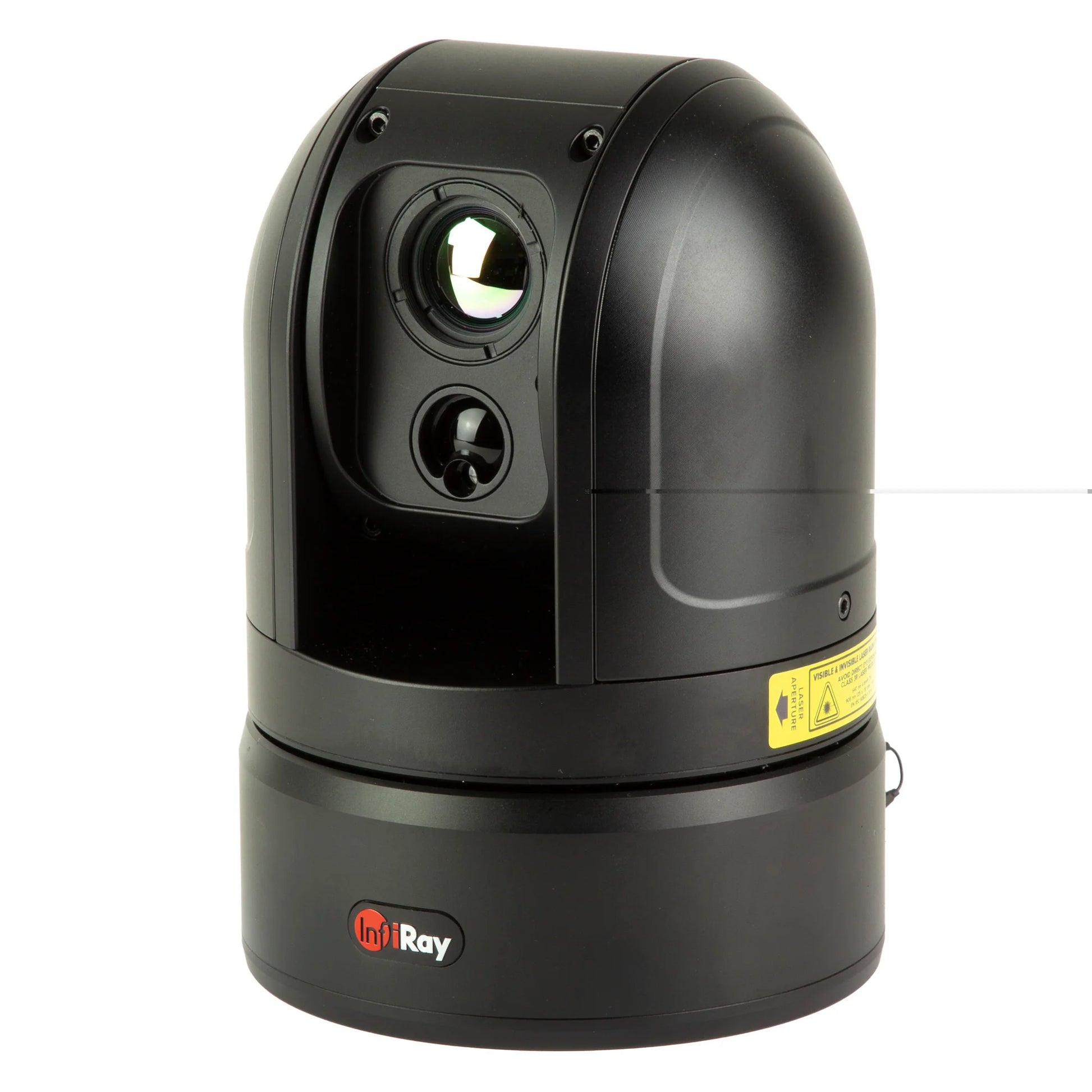

Infiray M6 LRF Vehicle Mounted Thermal PTZ

Overview

The Infiray M6 LRF Vehicle Mounted Thermal PTZ is designed to enhance scanning capabilities while onboard a vehicle. This system is overbuilt to maintain performance through years of use and exposure to the elements. It is packed full of useful features including video recording, gyro stabilization, and mobile app connectivity with wireless streaming. The new M6 includes an integrated laser pointer and laser rangefinder for increased situational awareness. The M6 kit has everything you need to add thermal imaging technology to any vehicle, including power and signal wiring harnesses and an easy-to-use wired thumbstick controller.

Features

The Infiray M6 LRF Vehicle Mounted Thermal PTZ offers a variety of features that make it a superior choice for outdoor hunting, search, and rescue applications. Some of its notable features include:

• High-Resolution Imaging: The camera system features a 640x512 high-resolution infrared sensor with a 50Hz frame rate, ensuring clear and smooth images.
• 360° Continuous Rotation: The system allows for 360° continuous rotation in the horizontal direction and 90° to -90° in pitch, driven by a brushless motor with low noise and stable performance.
• Multiple Output Interfaces: It supports analog video output, H.264 network output, and PELCO-D control protocol, making it easy to connect to home or land monitoring systems.
• Extreme Temperature Resistance: The system is designed to operate in extreme temperatures, with an IP56 rating and a wide operating temperature range of -20°C to 60°C.
• Waterproof Design: The system is equipped with an IP69K rating, ensuring protection against dust and rain.

Specifications

• Objective Focal Length: 25mm
• Digital Magnification: 1X, 2X, 4X
• Optical Magnification: 1X
• Objective Diameter: 25mm
• Detection Range: 1375 Yards
• Objective F#: 1.0
• Objective Lens Material: Germanium
• Sensor Type: InfiRay MICRO II
• Sensor Resolution: 640x512
• Sensor Pixel Size: 12μm
• Sensor Frame Rate: 50Hz
• Thermal Sensitivity: <50mk
• WiFi: Yes
• Mobile App: Yes
• User-Updatable Firmware: Yes
• Onboard Recording: Yes
• External Power Source: DC 12V
• Warranty: 5 Years
• Country of Manufacture: China
• Weight: 70.5 Oz.
• Housing Material: Aluminum
• Ingress Protection: IP56

Physical Specifications

• Weight: 70.5 Oz.
• Housing Material: Aluminum
• Dimensions: φ133mm, 188mm high

Sensor Specifications

• Device Technology: Thermal Imaging
• Sensor Type: InfiRay MICRO II
• Sensor Resolution: 640x512
• Sensor Pixel Size: 12μm
• Sensor Frame Rate: 50Hz
• Thermal Sensitivity: <50mk

Environmental Specifications

• Ingress Protection: IP56
• Operating Temperature: -20°C to 60°C

Optics

• Objective Focal Length: 25mm
• Detection Range: 1375 Yards
• Digital Magnification: 4X
• Optical Magnification: 1X
• Objective Lens Material: Germanium
• Objective Diameter: 25mm
• Objective F#: 1.0

Features & Performance

• WiFi: Yes
• Mobile App: Yes
• User-Updatable Firmware: Yes
• Onboard Recording: Yes
• External Power Source: DC 12V
• Warranty: 5 Years
• Country of Manufacture: China

The Infiray M6 LRF Vehicle Mounted Thermal PTZ is designed to provide a robust and versatile solution for outdoor applications. It combines superior imaging capabilities with advanced features like gyro stabilization and mobile app connectivity, making it an ideal choice for hunting, search, and rescue missions.
