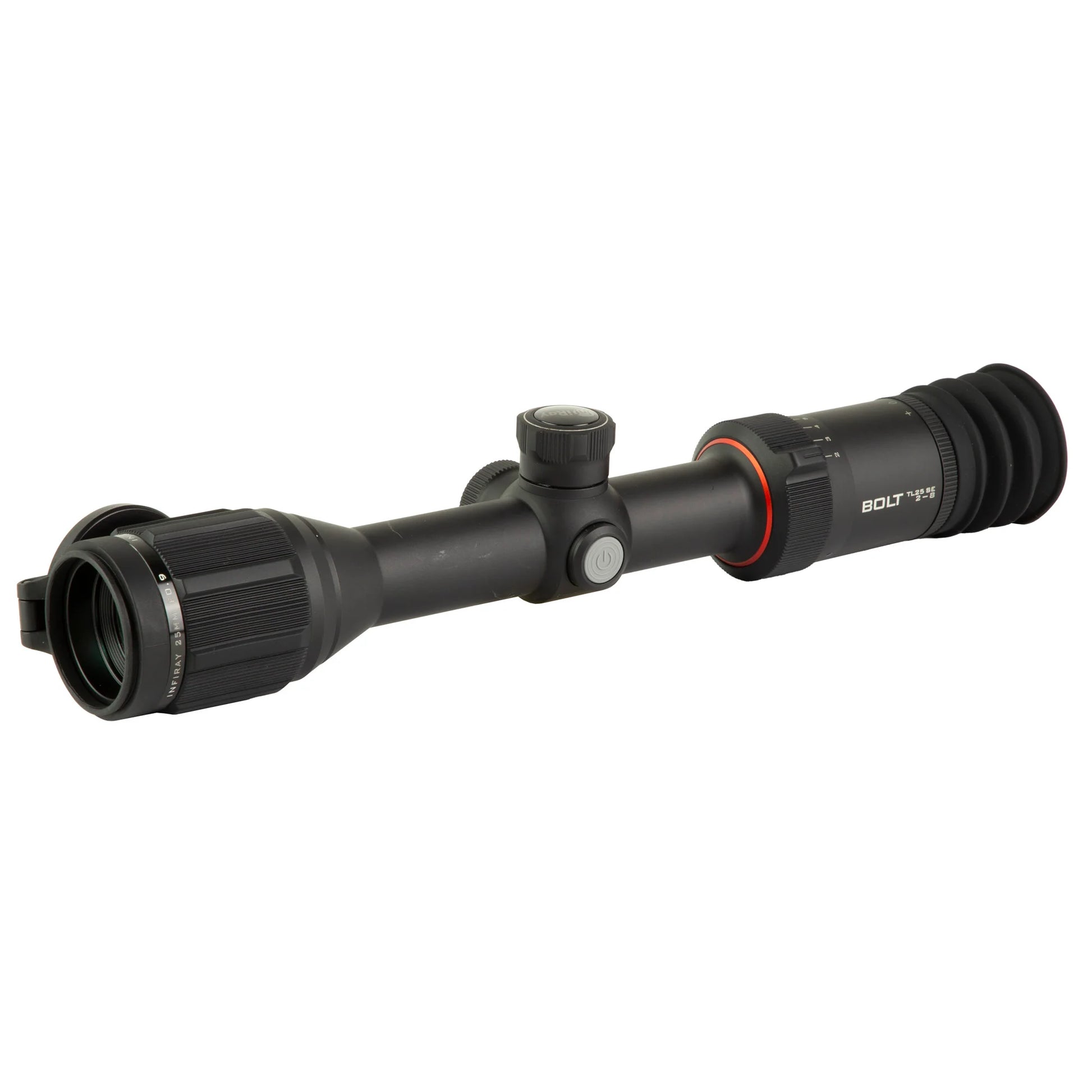

Infiray Bolt Tl25 Se Thermal 4x

Product Description

The InfiRay Outdoor BOLT SE thermal weapon sight is designed to provide exceptional clarity and ease of use for hunters and outdoor enthusiasts. Built on the success of previous BOLT models, the BOLT SE offers a familiar profile and tactile controls, making it user-friendly even for those accustomed to traditional rifle scopes.

Features

The BOLT SE features a 12 µm 384x288 Micro II sensor, paired with a 1536x1080 AMOLED display, providing exceptional clarity across all zoom levels. It is adjusted via an intuitive zoom ring, ensuring that users can easily monitor their targets. The device is equipped with a manual focus mechanism, allowing for precise adjustments.

Optics

• Objective Focal Length: 25mm
• Detection Range: 1375 Yards
• Display Type: AMOLED
• Eye Relief: 50mm
• Digital Magnification: 4X
• Diopter Range: -5 to +4
• Vertical Angular Field of View: 7.9°
• Horizontal Angular Field of View: 10.5°
• Focusing Mechanism: Manual Focus
• Objective F#: 1.0
• Objective Diameter: 25mm
• Objective Lens Material: Germanium
• Display Resolution: 1536x1080
• Optical Magnification: 2X

Sensor Specifications

• Sensor Type: InfiRay MICRO II
• Device Technology: Thermal Imaging
• Sensor Pixel Size: 12μm
• Sensor Frame Rate: 50hz
• Sensor Resolution: 384x288
• Thermal Sensitivity: <25mk
• Non-Uniformity Correction (NUC): Manual, Automatic, Semi-Automatic

Environmental Specifications

• Operating Temperature Range: -4°F to 122°F
• Recoil Rating: 1000 g/s² (300 Win./7mm Mag)
• Ingress Protection: IP67

Additional Features

• Onboard Recording: Yes
• Storage Capacity: 32GB
• Connector Output: Power/Data
• User-Updatable Firmware: Yes
• Mobile App: Yes
• Run Time: 8+
• Power Source: USB-C External, Built-In Battery Pack
• One-Shot Zero: Yes
• Stand-by Mode: Yes
• Reticle: 6 (1 Dynamic, 5 Static)
• Connector Type: USB-C
• Country of Manufacture: China
• Recoil Rating: 1000 g/s² (300 Win./7mm Mag)

Conclusion

The InfiRay Bolt TL25 SE Thermal Weapon Sight is a robust and user-friendly thermal imaging device that provides exceptional clarity and ease of use. Its compact design and intuitive controls make it ideal for hunters and outdoor enthusiasts. With a variety of features, including onboard recording, mobile app connectivity, and a long run time, this device is capable of enhancing your outdoor experience.
