Burris Thermal Riflescope Bts 35 V3

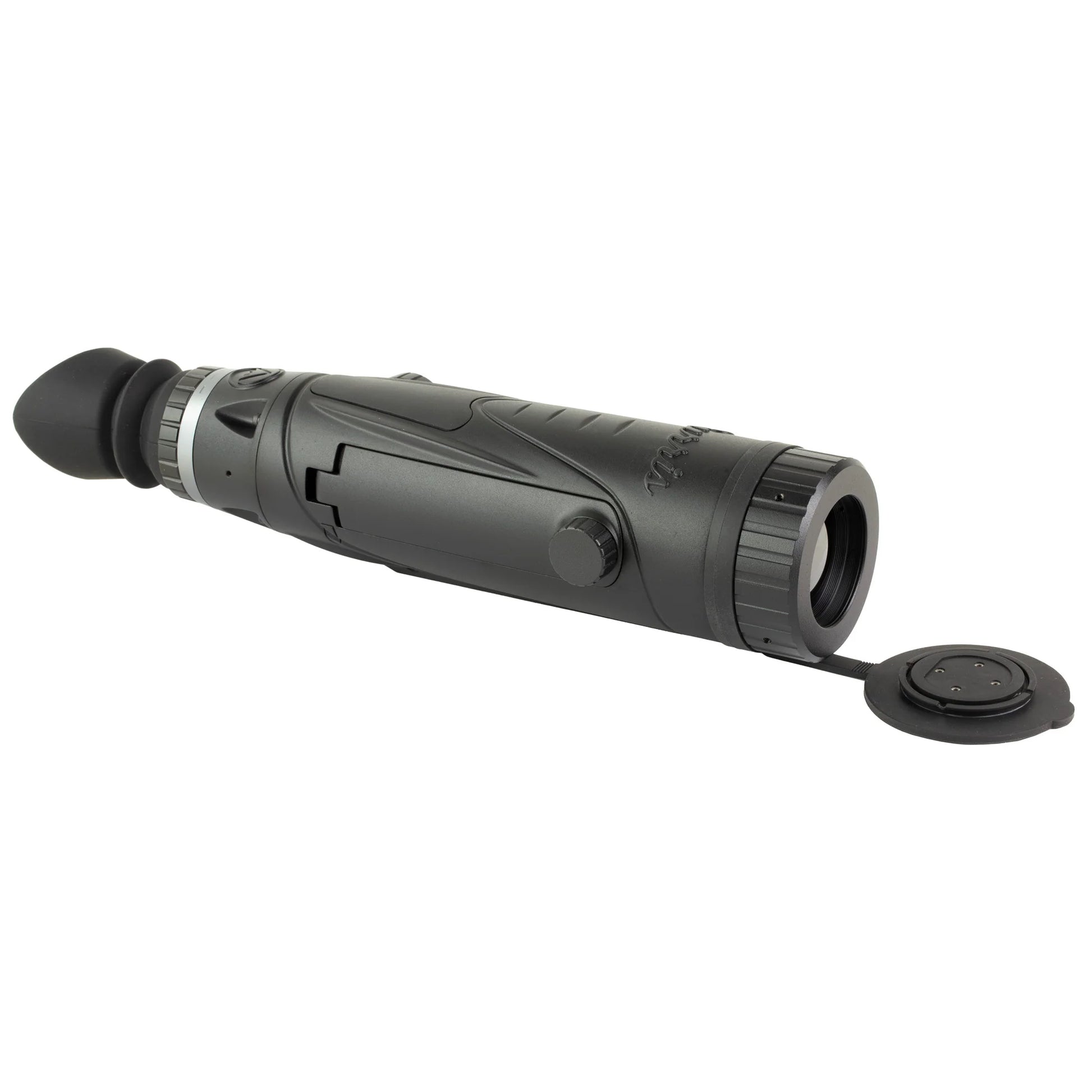

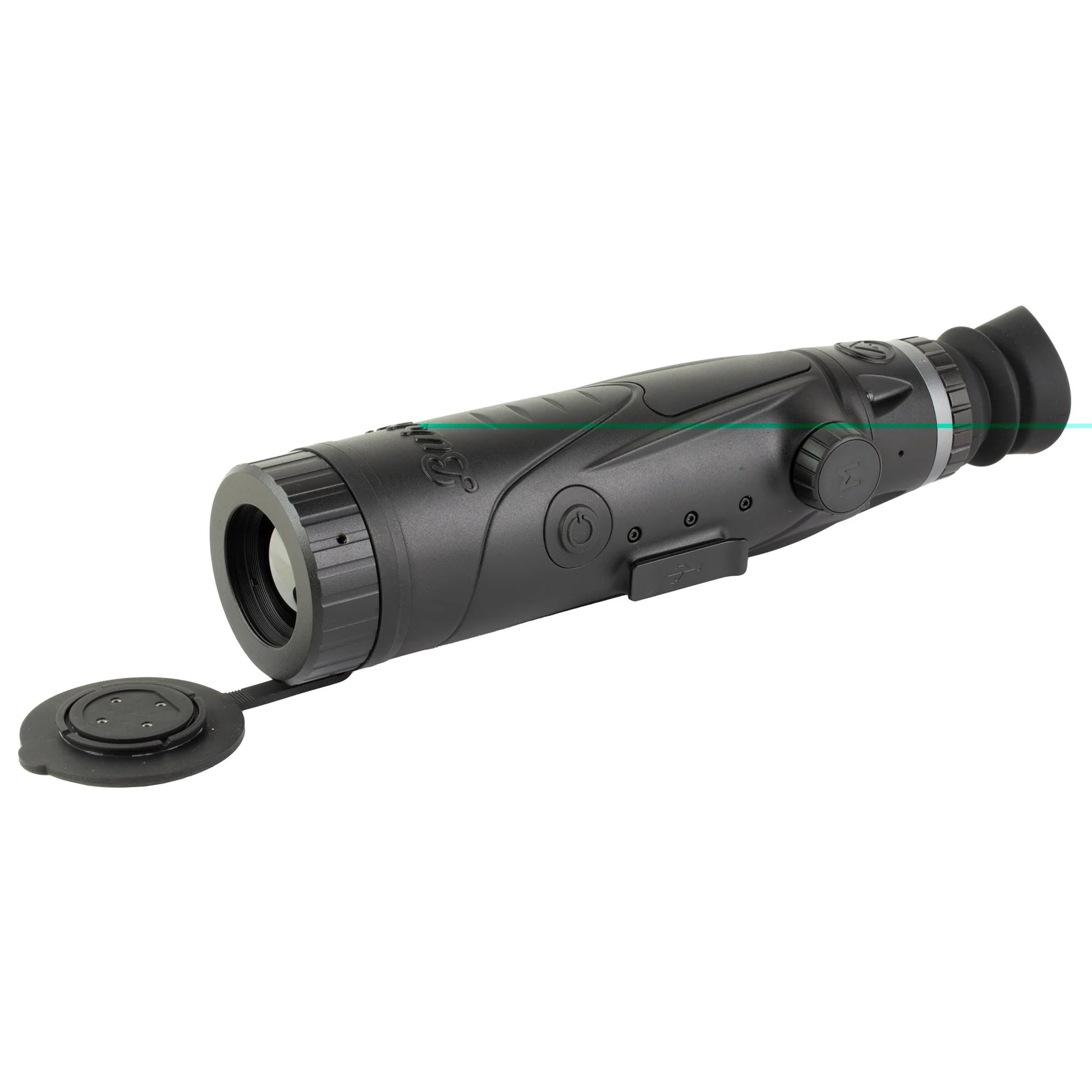

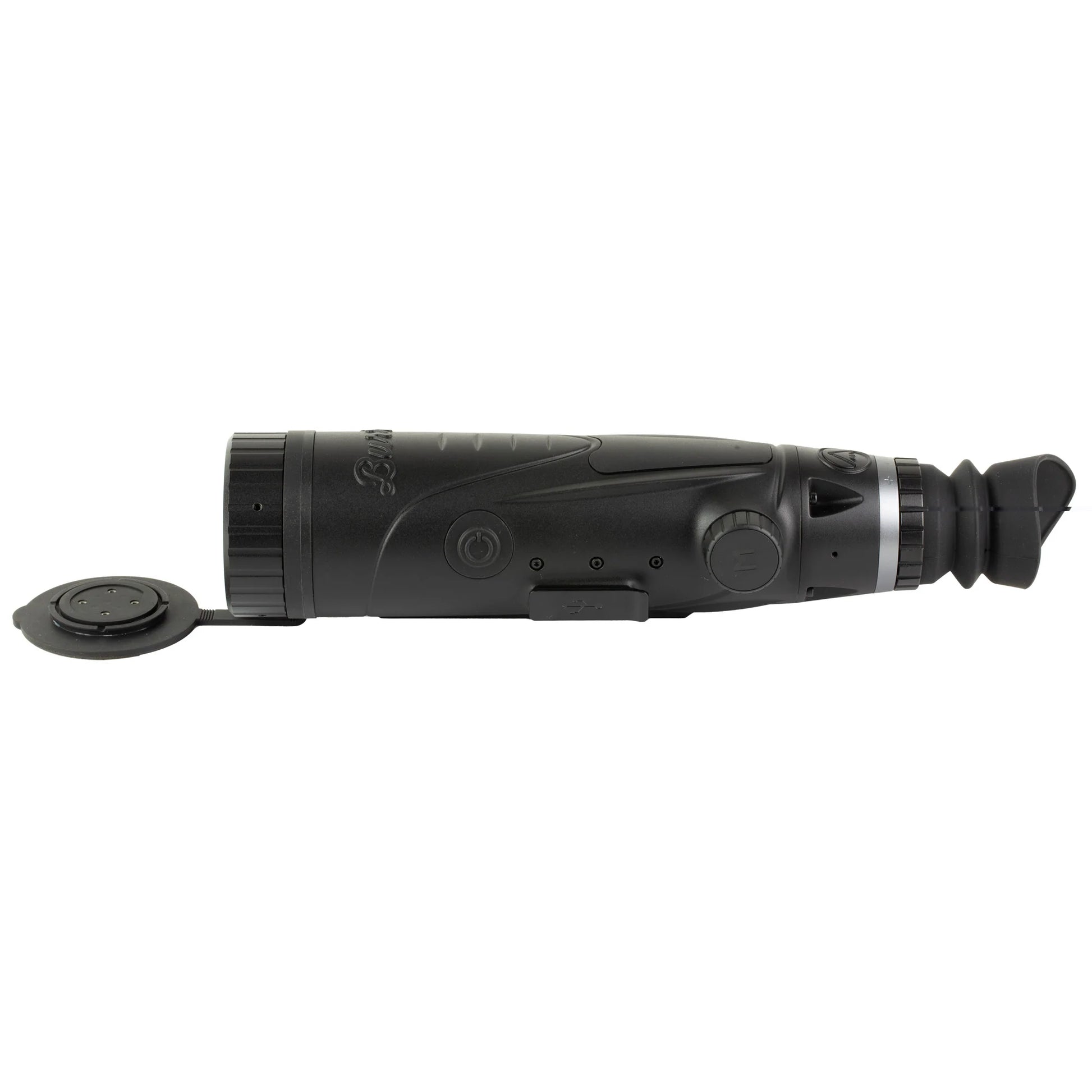

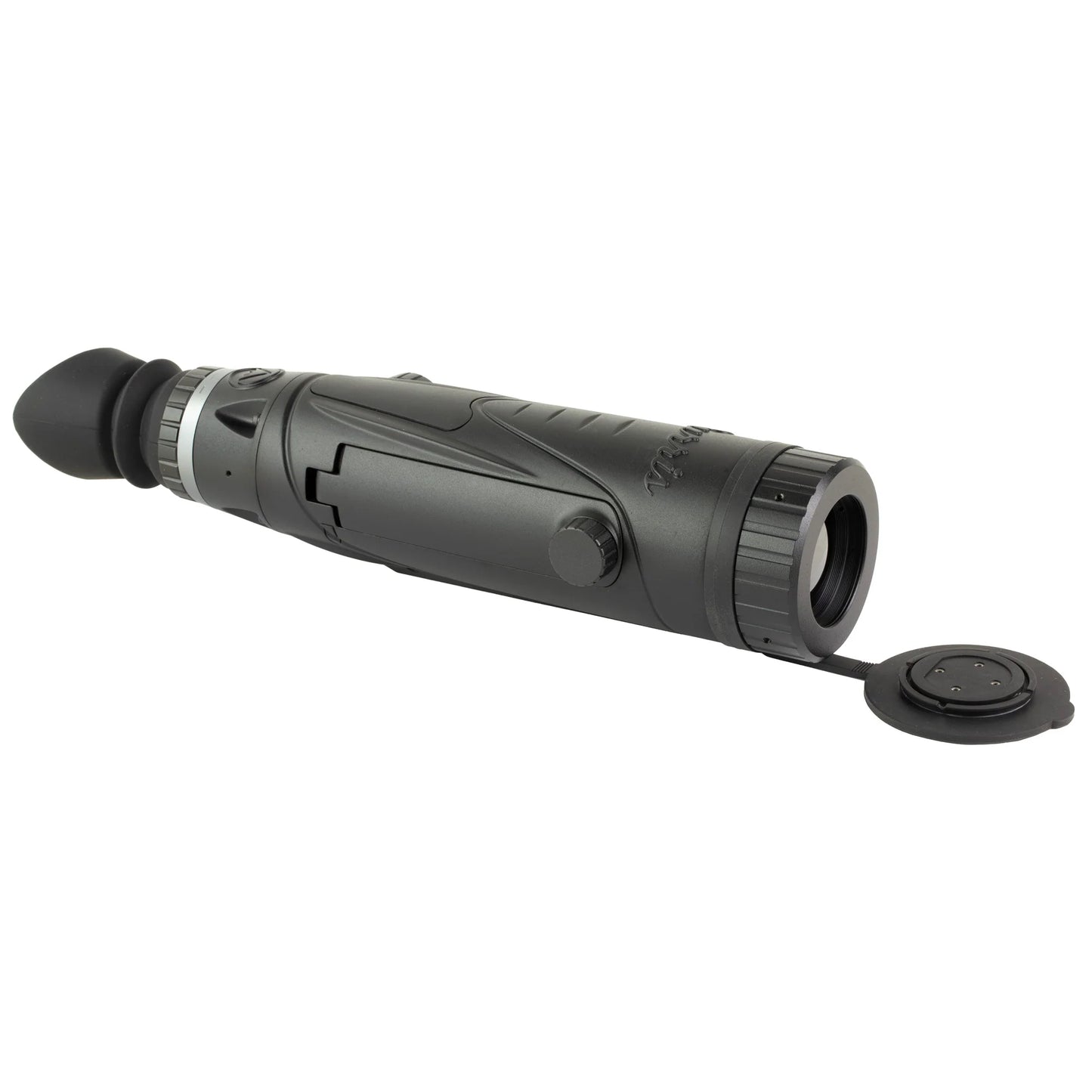

Burris Thermal Riflescope BTS 35 V3

Features

The Burris Thermal Riflescope BTS 35 V3 is designed to redefine the night hunting experience. It integrates Burris Cybercore technology, providing a high-resolution thermal imaging scope with advanced features like picture-in-picture (PIP), hot spot tracking, and 10 customizable reticles. This model offers superior detail and performance, making it an ideal choice for professional and recreational hunters alike.

Specifications

Technical Specifications

• Resolution: 640x480
• Pixel Size: 17 µm
• Focal Length: 35mm/F1.2
• Visual Angle: 10.7°×8.0°
• Frame Rate: 50Hz
• Digital Zoom: 2x, 4x
• Screen: 1024×768 Color OLED
• Color Palettes: Black hot, white hot, red hot, green hot, blue hot, amber, sephia, inferno, iron
• Magnification: 1x
• Battery: 1x 18650
• Working Time: ≥3h standard, ≥5h with 3400 mAh high-output battery
• Mounting Type: Picatinny
• Video Output: 4-pin LEMO
• Dimensions: 7.5″×5.6″
• Weight: 1.7~6.8 lbs
• Dioptric Compensation: Fine Diopter adjustment
• Shutter: Robust 800G shutter for shockproof performance
• Waterproof Performance: IP67

Advanced Features

The BTS 35 V3 includes several advanced features that enhance its performance:

• Picture-in-Picture (PIP): Allows a 2x magnification of the main image to be displayed.
• Hot Spot Tracking: Automatically tracks and highlights the hottest parts of the image, aiding in target acquisition.
• Customizable Reticles: Users can choose from 10 different reticle options to suit their preferences.
• Video Recording: Record and save thermal images directly from the scope.
• Remote Device Control: Use the BurrisConnect app to control the scope and create custom ballistic profiles.
• Battery Hot Swapping: Quickly swap batteries or connect to an external power source to extend runtimes.
• USB-C Charging: Convenient charging method for extended use.

Use and Operation

To operate the Burris Thermal Riflescope BTS 35 V3 effectively, follow these steps:

1. Power-On: Hold down the Power Button until the startup display appears.
2. Function Menu: Press the Roller Button to open the function menu.
3. Battery Installation: Install a single 18650 battery in the battery compartment.
4. Lens Focusing: Adjust the lens focusing ring to clear any blurry images.
5. Viewing Settings: Adjust the visibility and settings based on the user manual.

Maintenance and Troubleshooting

For optimal performance and to avoid common issues, follow these recommendations:

• Cleaning: Use a soft and dry microfiber cloth to clean the exterior surfaces of the riflescope. Avoid using chemical solvents or cleaners.
• Fault Detection: If the image quality is poor, check for proper lens focusing, shutter calibration, or infrared lens pollution.
• Warranty: The Burris Thermal Riflescope products are covered by a Limited Warranty. For detailed warranty information, scan the QR codes provided.

Conclusion

The Burris Thermal Riflescope BTS 35 V3 is a cutting-edge thermal imaging scope that combines innovative technology with user-friendly features. It offers unparalleled performance, advanced features, and exceptional resolution. Whether you are a professional hunter or a recreational enthusiast, this product is designed to help you seize the night with precision and confidence.
