Leupold Mark 3HD 1.5-4x20 AR-Ballistic Riflescope

The Leupold Mark 3HD 1.5-4x20 AR-Ballistic Riflescope is designed for shooters who need a rugged, precise, and repeatable MIL-based scope for their tactical rifle. This rifle scope offers a wide field of view, allowing for precise, close to mid-range shots. Built around Leupold’s Elite Optical System, it provides excellent light transmission, glare reduction, and resolution for all-day performance.

Features

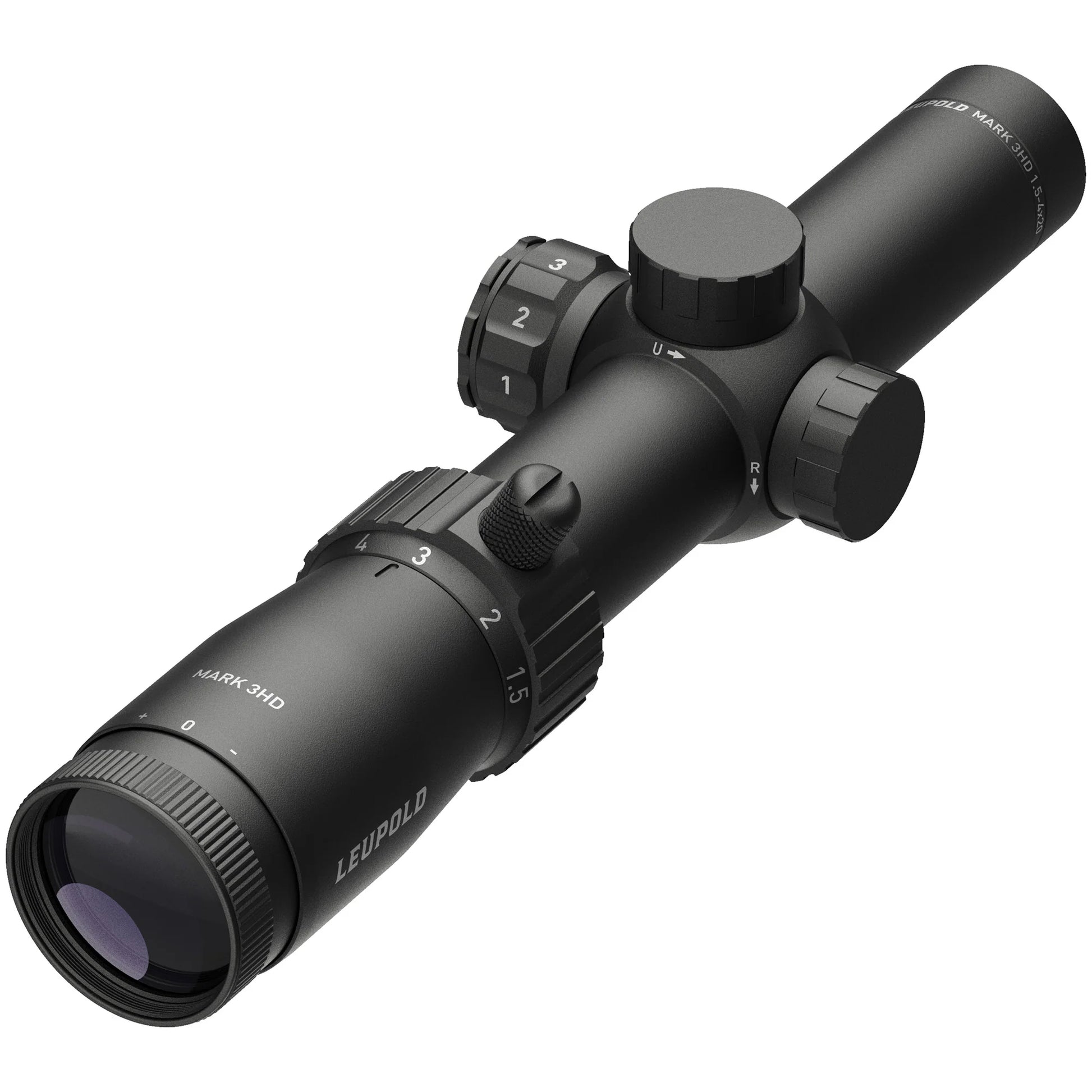

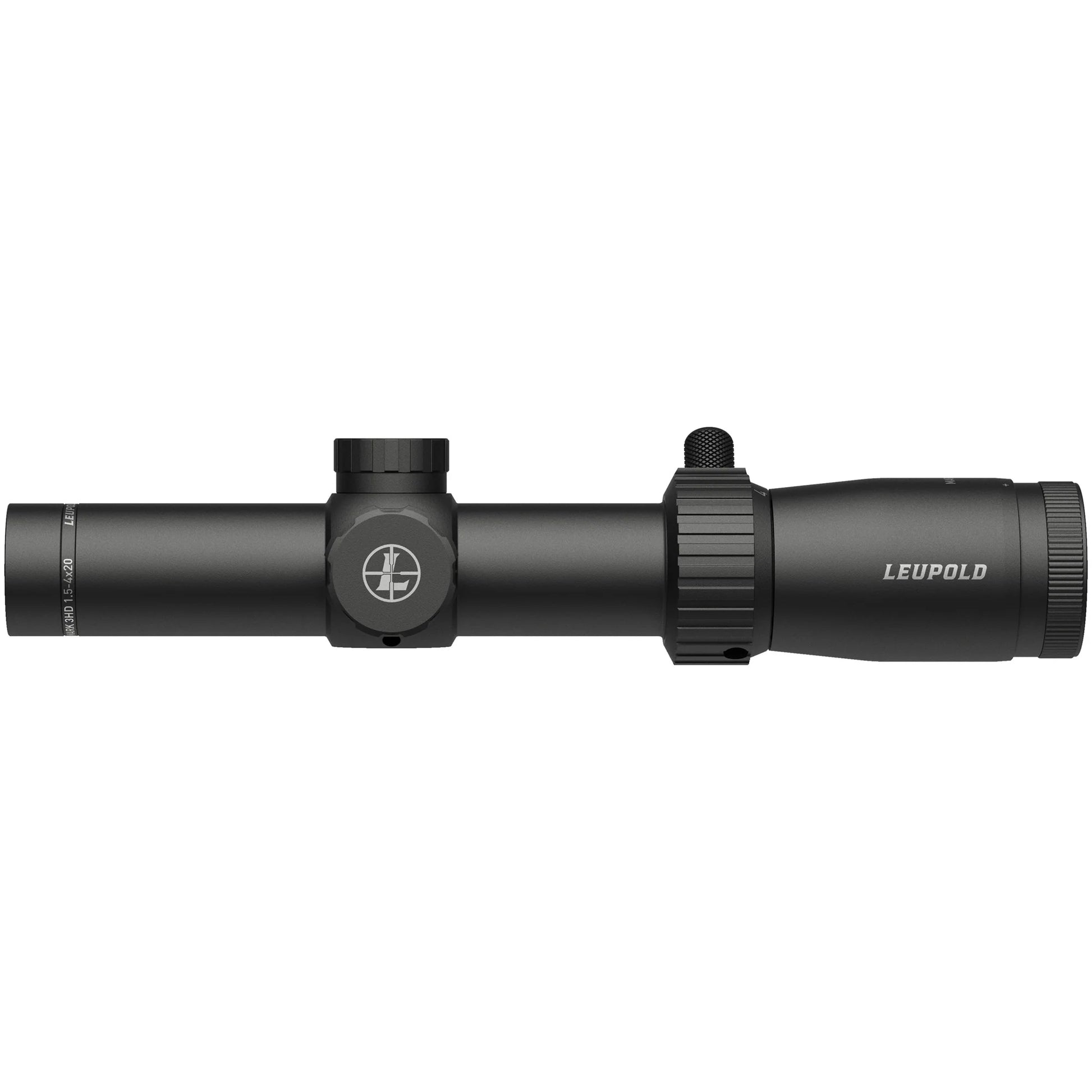

The Leupold Mark 3HD 1.5-4x20 AR-Ballistic Riflescope features an exposed elevation adjustment dial and a low-profile power selector with an integrated throw lever. This scope is waterproof, fogproof, and recoil-proof, ensuring its durability and reliability in various conditions. The scope also includes Leupold’s Elite Optical System, which enhances its performance by reducing glare and improving light transmission.

Specifications

• Reticle: AR-Ballistic
• Magnification: 1.5-4x
• Objective Lens Diameter: 20mm
• Linear FOV Low Mag (ft@100yds): 74.2
• Linear FOV High Mag (ft@100yds): 29.4
• Angular FOV Low Mag (Degrees): 14.1
• Angular FOV High Mag (Degrees): 5.6
• Eye Relief Low Mag (in): 4.2
• Eye Relief High Mag (in): 3.7
• Total Length (in): 9.4
• Weight (oz): 13.1
• Elevation Adjustment Value per Click: 0.1Mil
• Elevation Adjustment Range (MOA): 125
• Elevation Adjustment Range (MIL): 36
• Elevation Adjustment Range (cm @ 100m): 364
• Elevation Adjustment Per Revolution: 5 MIL
• Windage Adjustment Value per Click: 0.1Mil
• Windage Adjustment Range (MOA): 125
• Windage Adjustment Range (MIL): 36
• Windage Adjustment Range (cm @ 100m): 364
• Windage Adjustment Per Revolution: 5 MIL

Additional Details

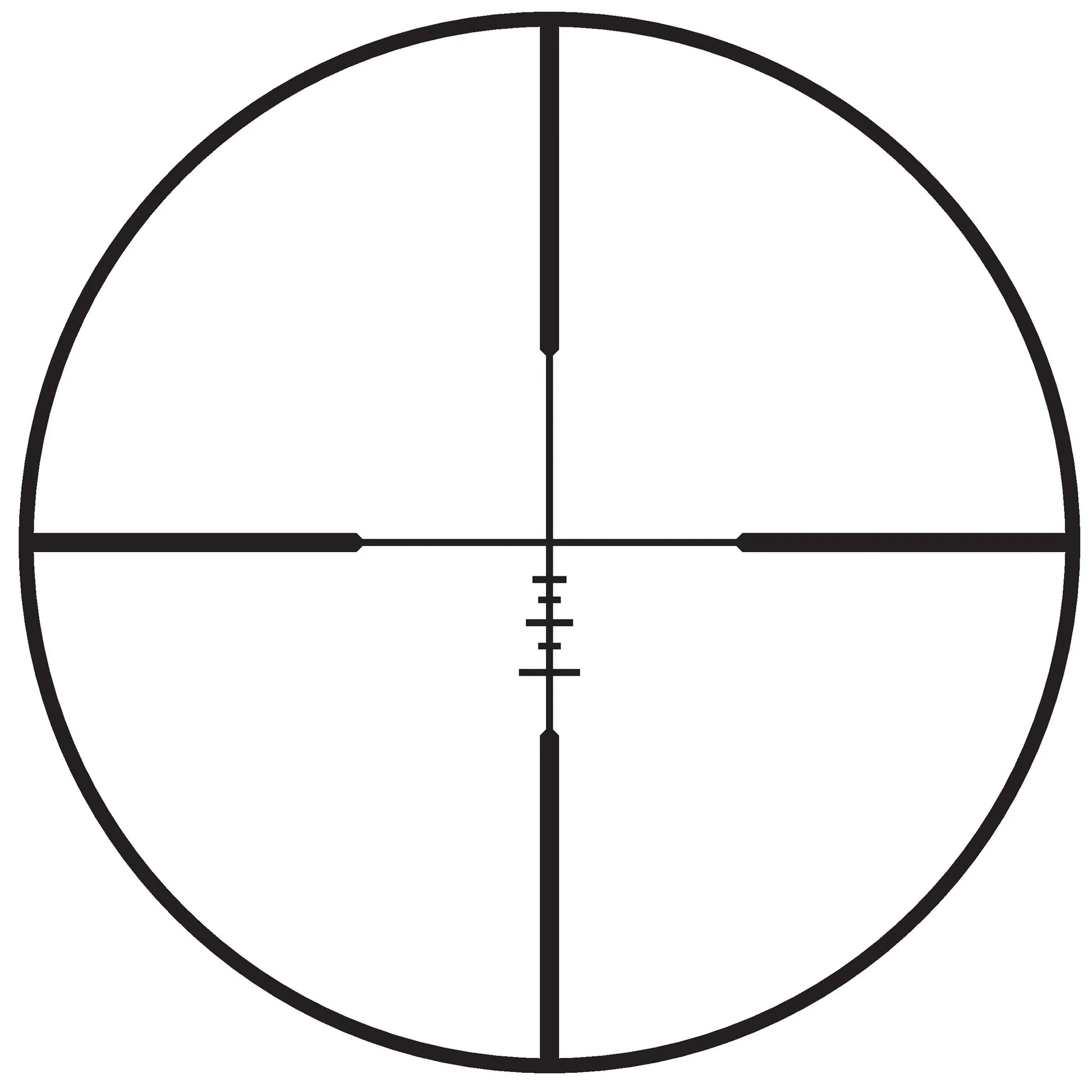

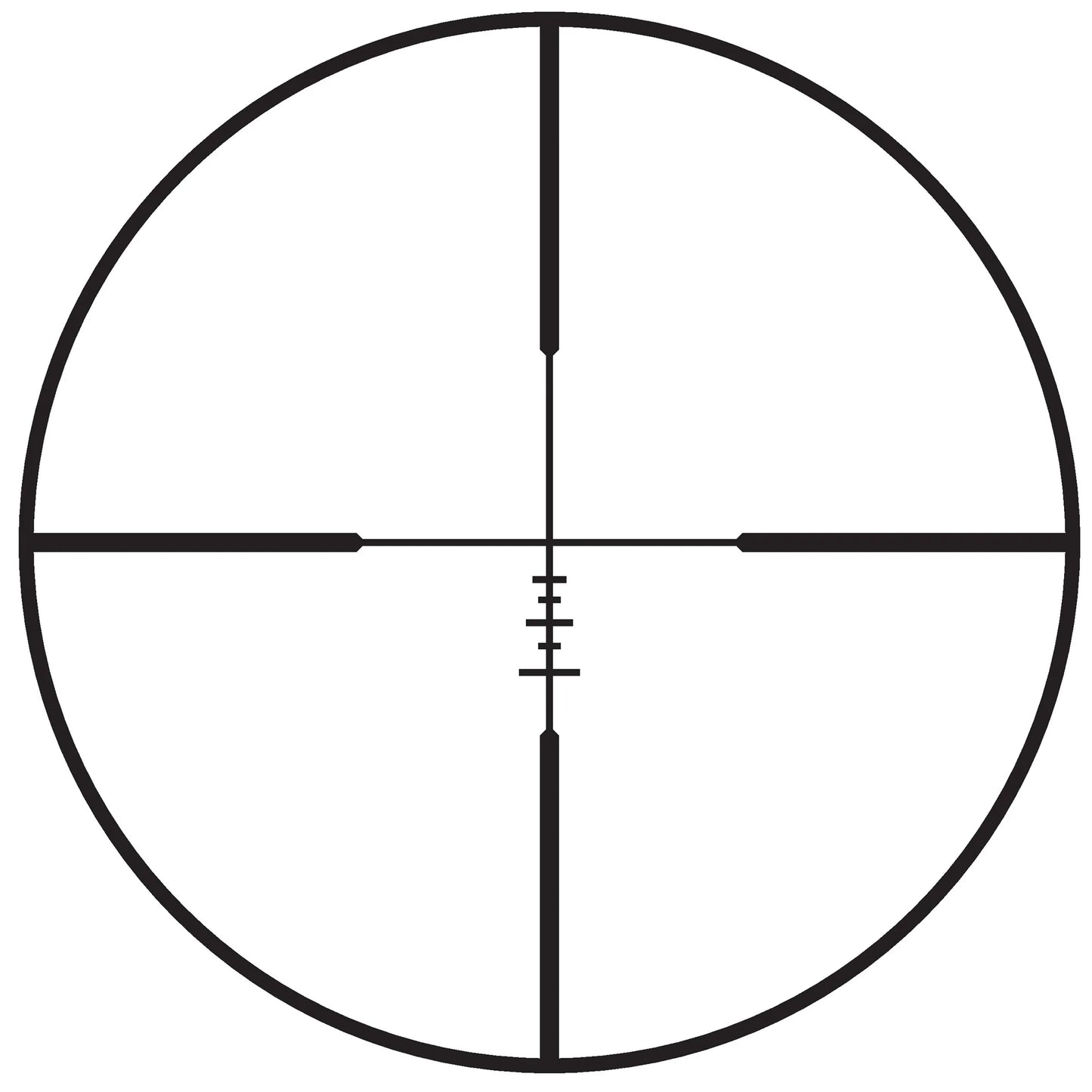

The AR-Ballistic Reticle, specifically designed for .223 AR-style rifles, provides holdover hash marks for quick target engagement. It uses a 200-yard zero with aiming points out to 600 yards. This reticle is based on a Duplex® style design and is placed in the second focal plane.

Applications

The Leupold Mark 3HD 1.5-4x20 AR-Ballistic Riflescope is suitable for a variety of applications, including hunting, competition, and tactical use. Its rugged construction, precise adjustments, and high-quality optics make it an excellent choice for shooters who demand reliability and performance.
